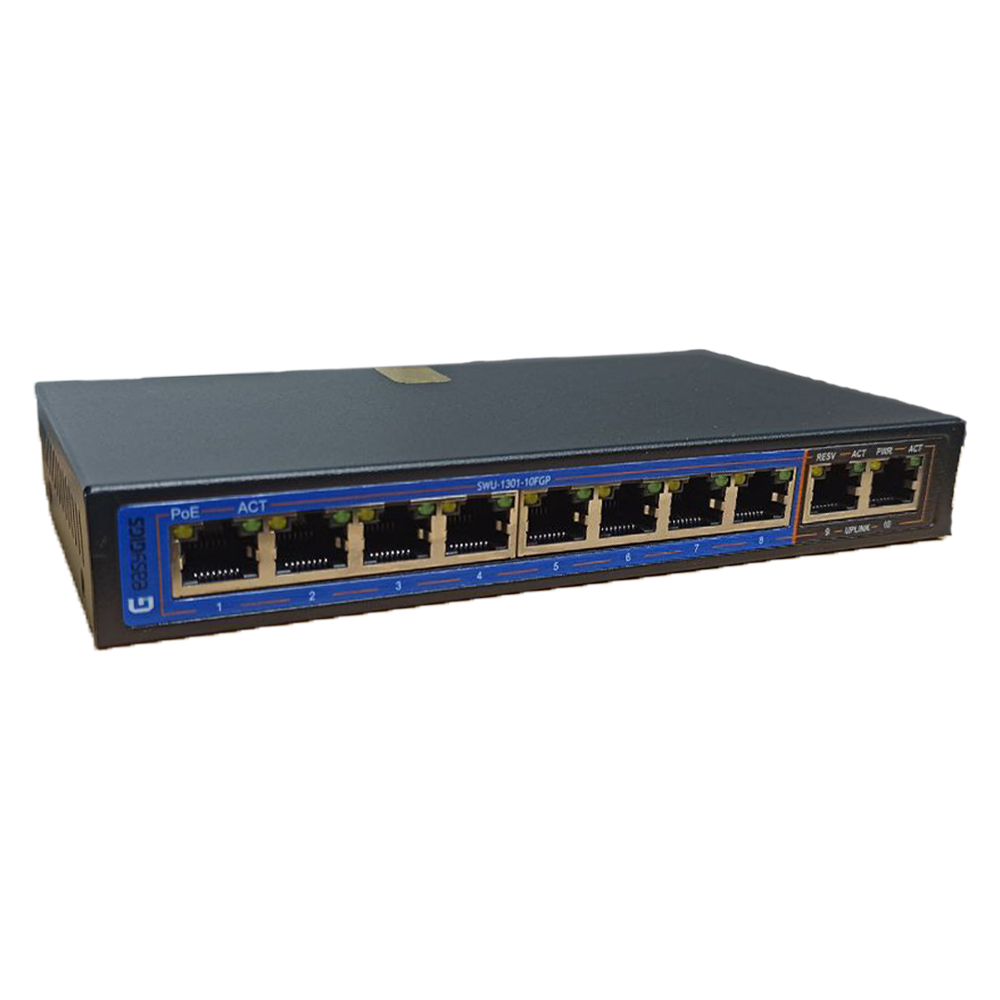

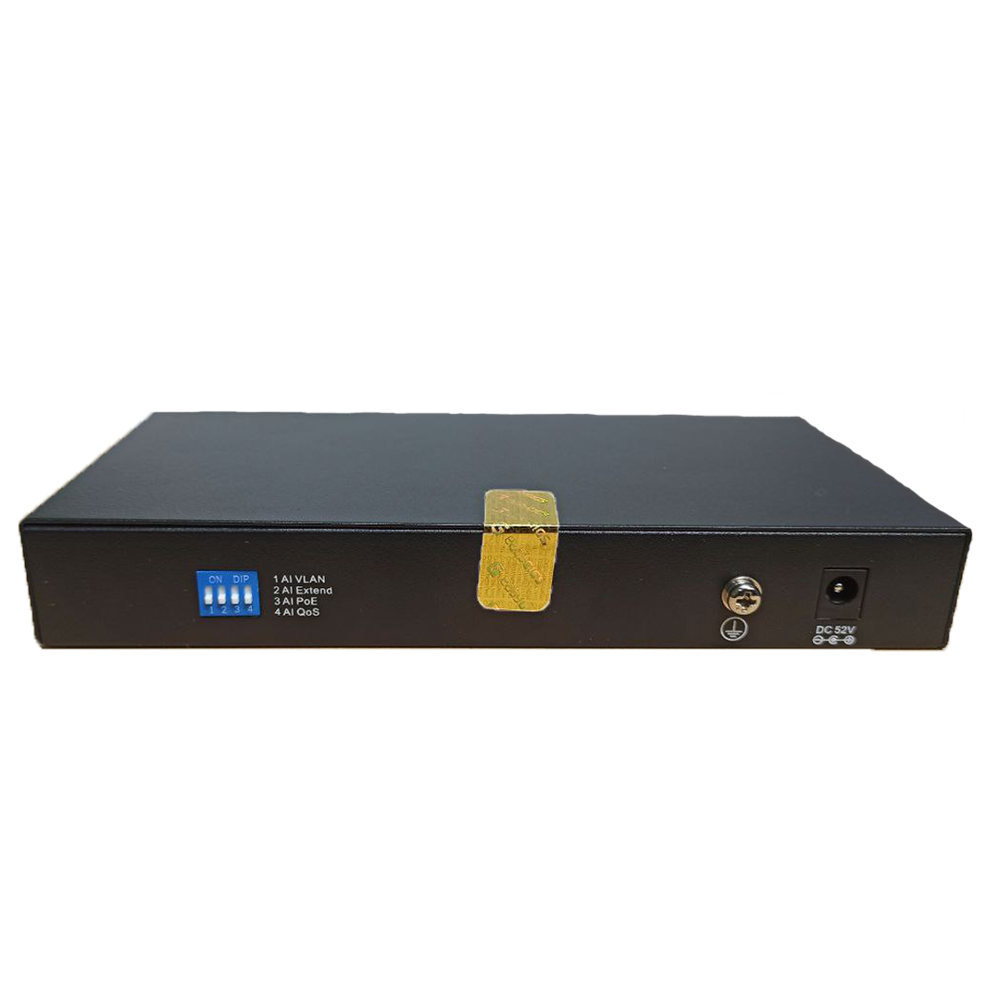

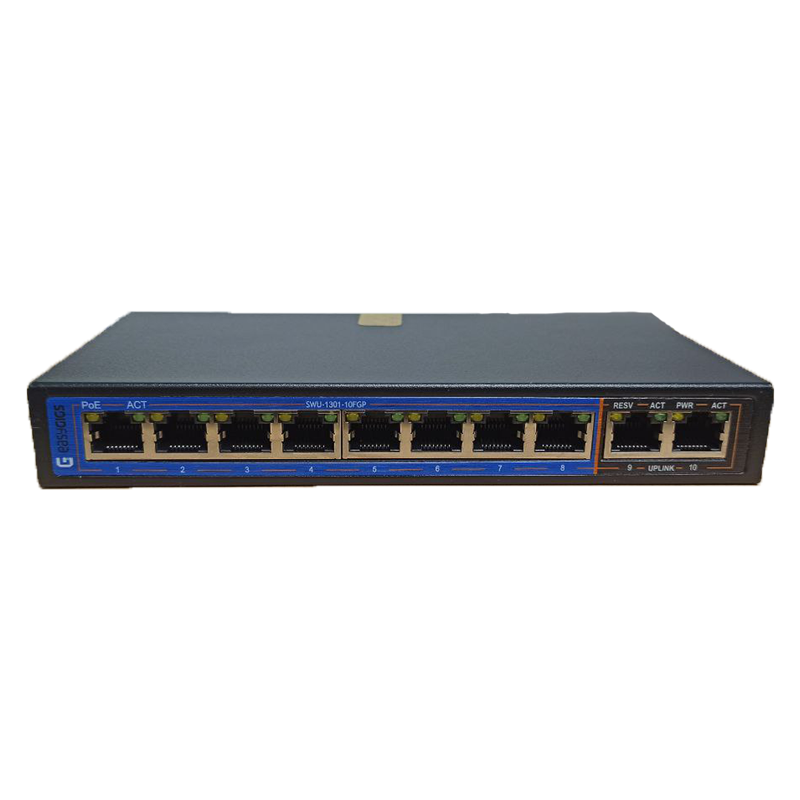

EG-SWU-1301-10FGP is a Gigabit uplink 8-port 100M PoE switch‭, ‬it has three working modes‭, ‬It has 4‭ ‬working modes‭, ‬AI VLAN mode‭, ‬AI Extend video monitoring mode‭, ‬AI PoE mode‭, ‬AI QoS mode‭. ‬All ports are free to communicate by default‭; ‬In AI VLAN mode‭, ‬1‭ -‬8ports are isolated from each other‭, ‬which can effectively restrain network storms and improve network performance‭. ‬In AI Extend mode‭, ‬the effective transmission distance of 1-8‭ ‬ports can reach 250‭ ‬meters‭, ‬which is suitable for remote monitoring and power supply‭. ‬In the AI power supply mode‭, ‬the switch automatically detects the working status of the PD device and finds that the device‭ ‬abnormal automatically restarts the device‭. ‬In AI QoS mode‭: ‬the video data will be processed preferentially when the device is‭ ‬congested to make the video smoother EG-SWU-1301-10FGP supports the standard IEEE 802.3‭ ‬af/at protocol‭, ‬which can automatically‭ ‬detect and identify the PD devices and supply power‭, ‬therefore‭, ‬Don not worry about PoE or non-PoE devices that can damage private standards‭.‬

AI Extend‭:‬‭ ‬1-8‭ ‬port supports 250M meters long distance power supply‭ (‬recommended cat 5‭ ‬or above‭)‬
AI VLAN‭: ‬Isolating ports 1-8‭ ‬from each other‭, ‬restrain network storms effectively and improve network performance
AI QoS‭:‬‭ ‬Prioritize the identified video data to make video transmission smoother
AI PoE‭:‬‭ ‬Automatic detection power of port‭, ‬power off and restart the device if find dead machine
Support standard IEEE 802.3‭ ‬af/at protocol‭, ‬automatically detect and identify the PD devices comply with IEEE 802.3‭ ‬af/at protocol and supply power‭.‬
Support upward port auto MDI/MDIX‭.‬
Adopted storage forward switching system‭.‬
Smart‭ ‬power and minimum consumption‭, ‬guarantee PD requirement‭
